SimpleTronics LLC

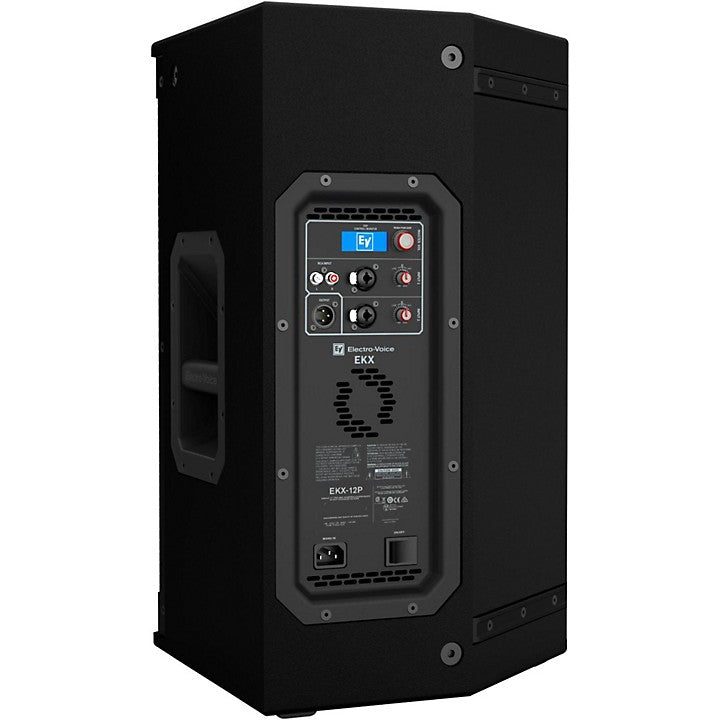

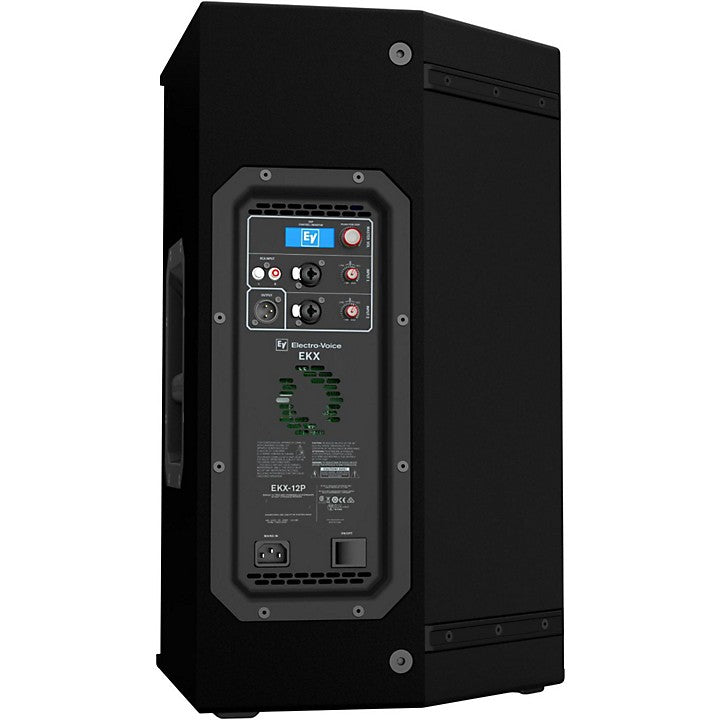

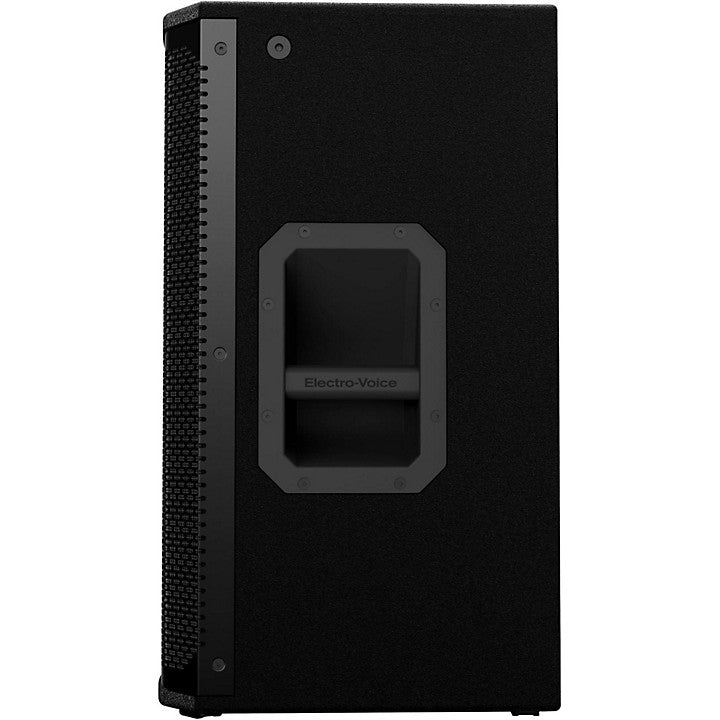

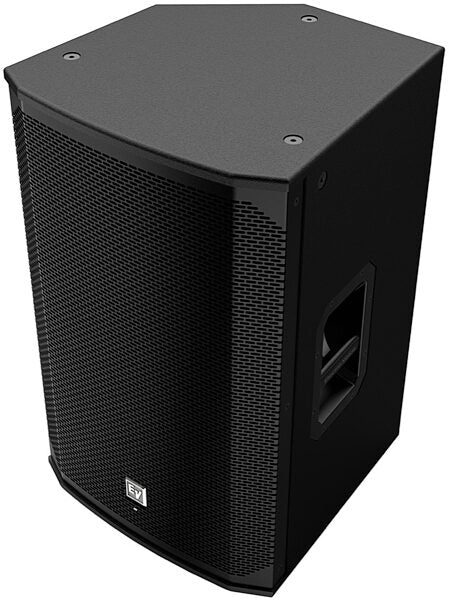

Electro-Voice EKX-12P Powered 12" 2-Way Speaker US

Regular price $999.00 USD
Regular price Sale price $999.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

The EKX series is the newest member of the Electro-Voice portable loudspeaker family. It combines legendary EV sound quality and reliability with the latest technology, all in a compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, installations and other sound applications. The EKX-12P features a 12" LF driver and a 1" titanium compression driver, along with a 1500W Class D power amplifier.

EV-engineered components and EV' patented Signal Synchronized Transducers (SST) waveguide design combine to provide precise coverage and superior sound quality at high SPLs. EV' award-winning industrial design ” with robust wood enclosures and durable EVCoat finish ” ensures that EKX speakers look as great as they sound. EKX-12P delivers up to 132 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1M 1-inch titanium compression driver).

The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by multiple onboard sensors) which ensures superior performance and reliability in demanding environmental conditions. Powered subwoofer models allow easy setup via three (3) presets (Music, Live, Club), sub/top system-match crossovers, five (5) user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level meters, and master volume control to ensure optimal gain structure.

EKX active models feature lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, aluminum pole-mounts, and all-metal handles.
Features
  • Active 2-Way full range
  • 1500W Class D power amp
  • Low frequency response to 55Hz
  • Max SPL of 132 dB
  • 15mm plywood construction
Specifications
Speaker configuration
  • Active/passive: Active
  • Type: 2-Way full range
  • LF driver: 12 in.
  • MF driver: Not applicable
  • HF driver: 1 in.
Power amp (active)
  • Amplifier type: D
  • Wattage: 1500W
  • Mixer/preamp: Not applicable
Audio
  • Frequency response: 55Hz - 20kHz
  • Coverage pattern: 90 x 60
  • Max SPL: 132 dB
Enclosure
  • Construction: 15mm plywood
  • Width: 14.75 in.
  • Height: 23.9 in.
  • Depth: 14.0 in.
  • Weight: 38.4 lbs.
Inputs
  • XLR/TRS Combo: 2
  • XLR: Not applicable
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: 1 stereo
  • SPEAKON: Not applicable
Output/thru
  • XLR: 1
  • TRS: Not applicable
  • RCA: Not applicable
  • SPEAKON: Not applicable
Warranty
Microphones: 3 year full replacement
Wireless: 2 years
Speakers: 3 years active, 5 years passive
